Product Description

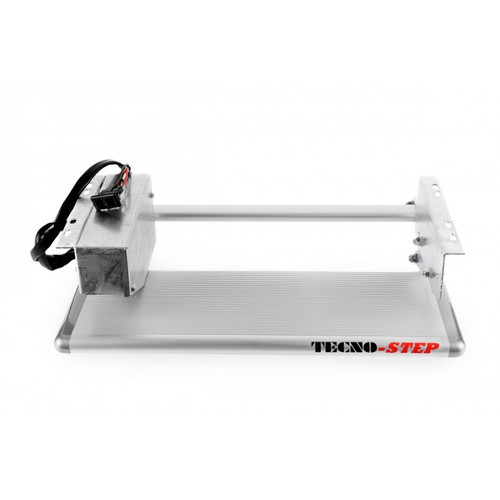

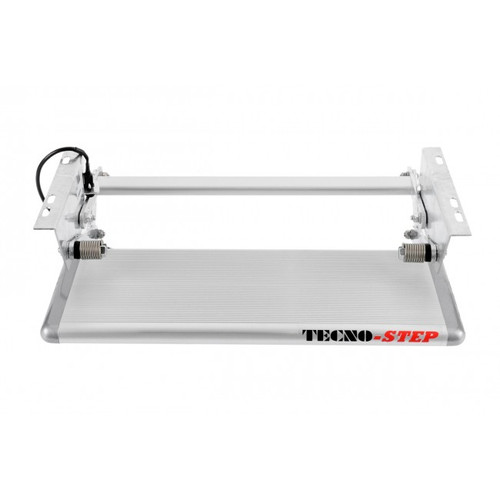

Step Double Electric 12 Volt 560Mm Aluminium/Steel

The Double Step is fantastic addition to your caravan or motorhome!

This series of innovative electrical steps are made from galvanised steel for durability & stability. The footrests are made with anodized aluminium (so they won’t rust) & are spaced at a comfortable height for your convenience.

The mounting brackets can be bolted (bolts not included) or welded to the Chassis and are 554mm from outside to outside

Features

• 560mm wide.
• Operated by a switch.
• Aluminium/steel construction
• Electric switch provided
• You cannot ride on the step when operating

Specifications

• Clearance required: 170mm deep when closed
• Closed step is 50mm proud of mounting flange
• Open step is 300mm proud of mounted flange
• Open step tread is 190mm below mounting flange
• Overall width of top mounting frame: 554mm
• Overall tread size: 575mm x 200mm
• Shipping Weight:12 Kgs.
